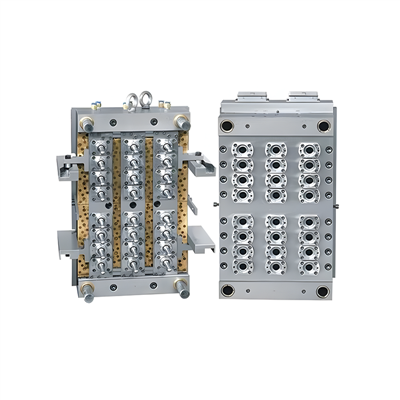

48 Cavity PET Preform Injection Moulding

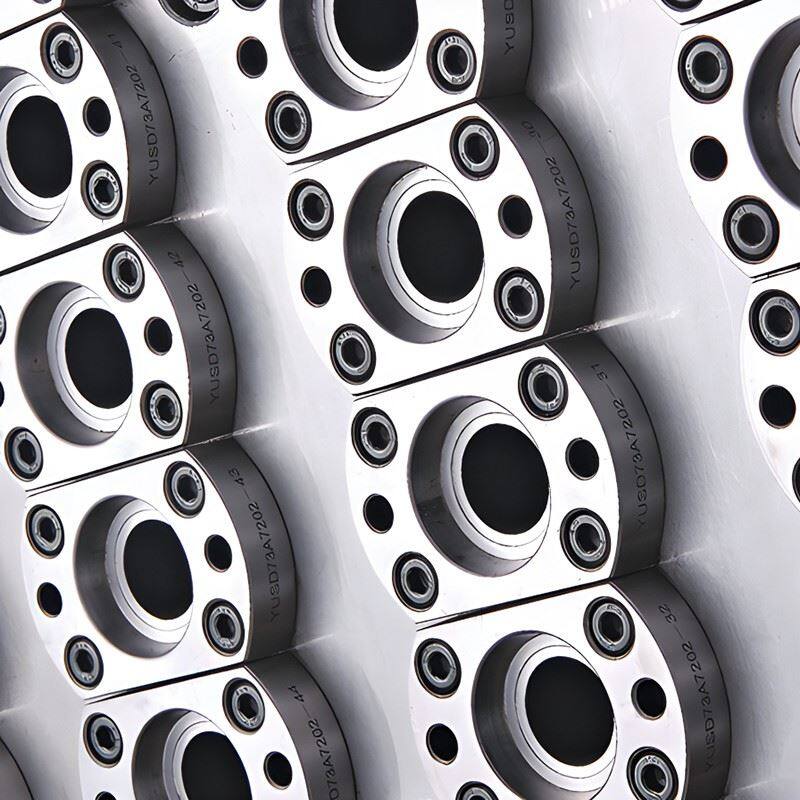

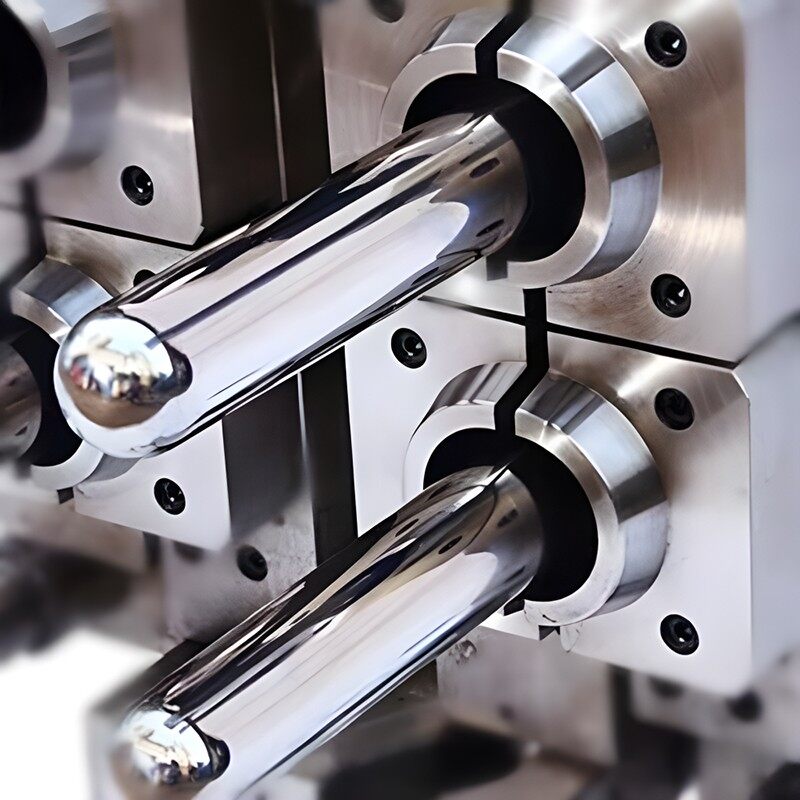

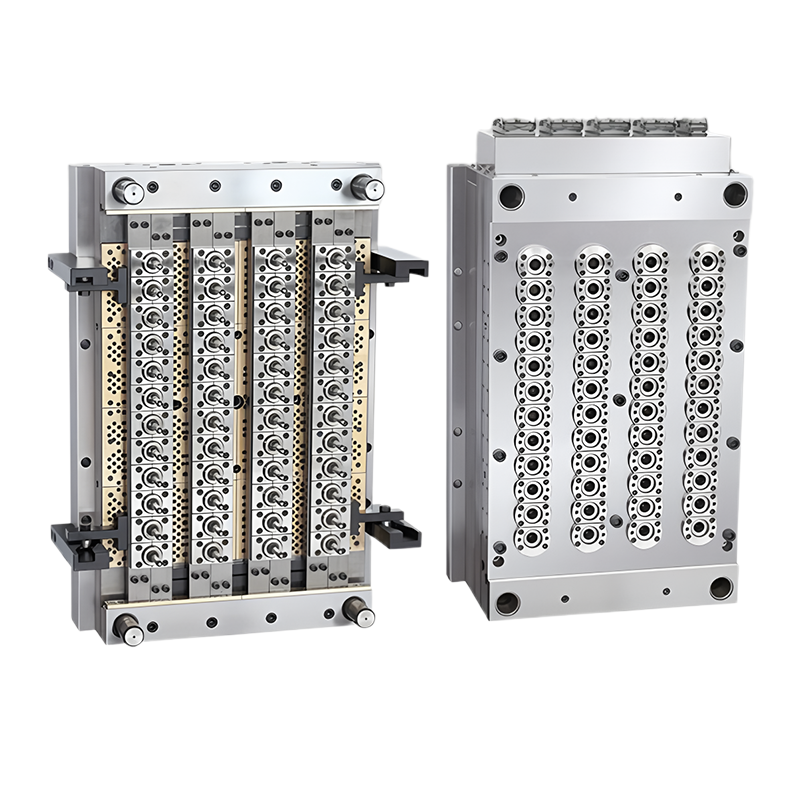

The 48cav PET preform mold is designed for large-scale preform production needs in industries such as bottled water, beverages, daily chemical packaging, etc. The mold core/cavity is made of high-quality S136 mold steel, undergoes vacuum quenching and precision polishing, achieving a hardness of 50-54 HRC and a mirror-level surface finish. It makes injection-molded PET preforms with uniform wall thickness, neck-part burr-free, and high transparency, matching the production standards of various PET containers, such as mineral water bottles and carbonated beverage bottles. The efficient 48-cavity layout, combined with a precise hot runner temperature control system, enables multi-part molding and simultaneous molding. For example, with a 15g weight and 28mm diameter (neck model: 1881), compared to traditional 24-cavity molds, production efficiency increases by over 60%, and the production cost per product is reduced by over 56%.
We support custom molds for different PET preform structures and weights, are compatible with various injection molding machine models, and accommodate diverse requirements for subsequent blow-molded PET bottle diameter and height.
Quality first, Reliable quality
The mold core and cavity are made of high-quality steel S136, which has the advantages of corrosion resistance, high hardness, excellent processing performance, low maintenance cost, improved quality and, service life. Since the mold cooling water channel is not affected by corrosion, the heat conduction characteristics and cooling efficiency remain stable during the life cycle of the mold, ensuring that the mold remains unchanged for a long time.
Efficiency leap, Precision stability
The cavity of the PET preform mold adopts a spiral water circulation design, which improves production efficiency, ensures product quality, reduces energy consumption, and provides good environmental performance. This design also improves the mold's cooling efficiency by optimizing the cooling system, speeding up the production cycle, and reducing energy consumption and environmental pollution.

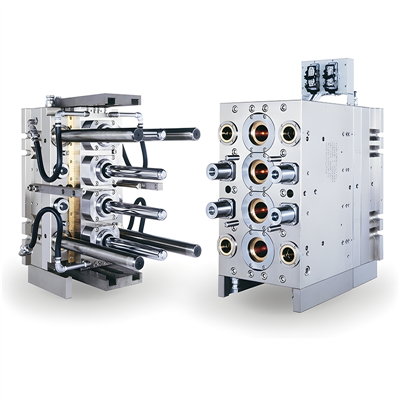

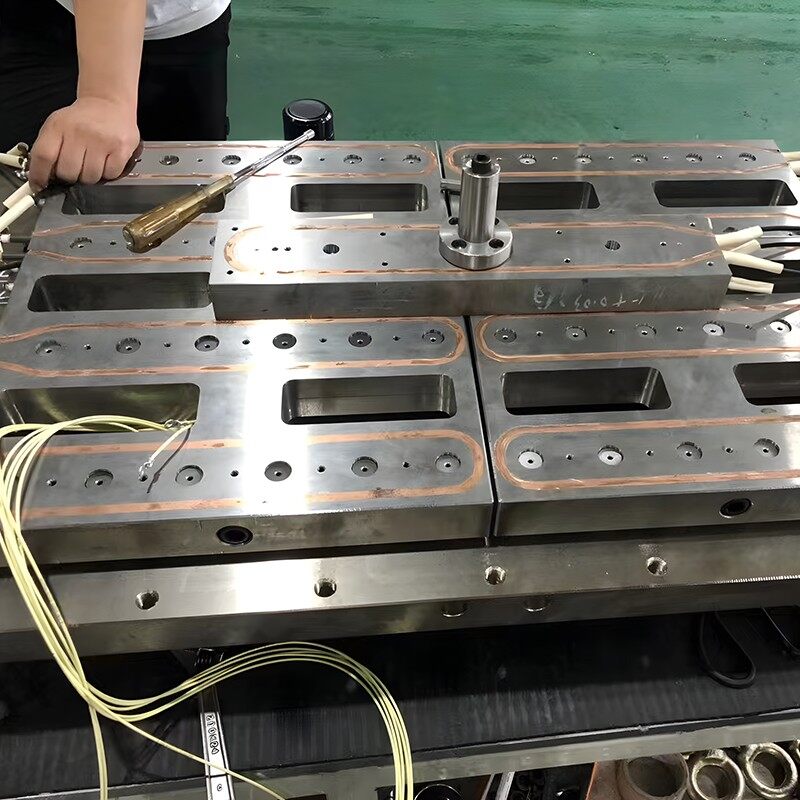

PET Preform Mold Injection Systems
How To Control Mold Temperature?
During the mold injection molding process, the hourly flow rate and temperature of the chilled water of the chiller should be adjusted according to the actual production products, such as bottle caps, preforms, etc..It is to fully cool the mold energy due to the energy carried by product molding and generated by friction inside the mold, so that the energy of the mold heating and the energy of the chilled water cooling reach a balance state, to extend the service life of the mold and maintain its stability. In production, it is necessary to consider the characteristics of product materials comprehensively (PE, PP, PET, etc.), such as density, melting point, specific heat capacity, product molding shrinkage ratio, etc. and production processes, such as: injection molding machine parameter adjustment, whether there is recycled material in production, and the proportion of recycled materials, etc. to control the heating temperature of raw materials.
Mold Design
Processing Center
Product Assembly
Products Testing
Product Description

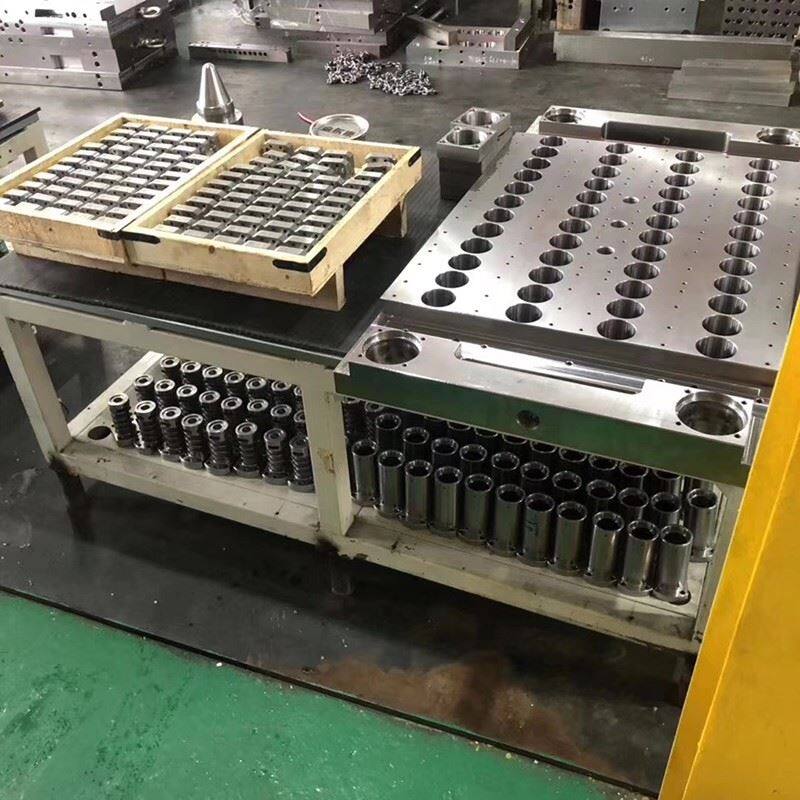

Mold Processing
Shipping & Packaging
FAQ
Q: How can I get the after-service?
A: We will send you the spare parts free if the problems are caused by us.
If it is a man-made problem, we also send the spare parts, which are charged. If you have any problems, you can call us directly.
Q: Is your price competitive?
A: Only good quality products we supply. Surely we will give you best factory price based on superior product and service.
Q: Which payment form can you accept?
A: T/T, Western Union, PayPal, etc. We accept any convenient and swift payment terms.
If you want to learn more information about PET injection molding, pls contact us freely.
